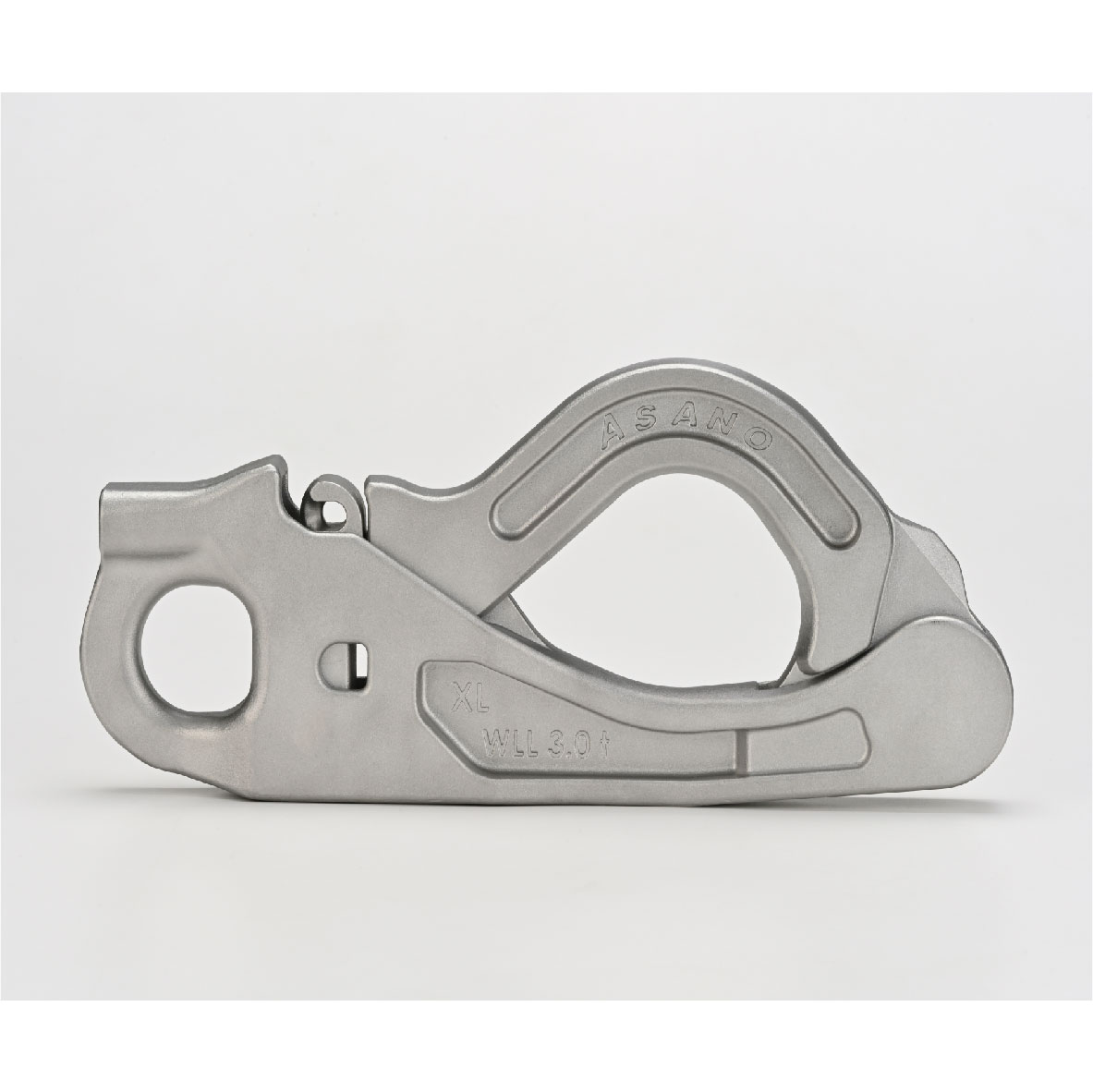

ASANO has newly developed a hardware for Danish Seine. By incorporating the basic concepts of ASANO's Auto Shackle series -"quick release" and "secure rigging"- the gate can be remotely released by pulling on a rope attached to the main body. The arm shape designed for easy rope removal upon release. For now, only Size XL in stock, but soon smaller sizes: S, M, and L will be available.
■Material: Special stainless steel Spring/set screw: SUS304, Lock pin: copper alloy
*This product is fishing gear. Do not use it as a hanging hook for cargo handling. *The gate may open unintentionally due to physical shock. *If the gate is released while a load is applied, the main unit may be subjected to strong impact and the product may be damaged, or an accident may occur, such as a released load hitting the surrounding objects or people.
Request Quotation for This Item
SHARE
Key Features
-
Feature 01
Easy gate release operation
Feature 01
Easy gate release operation
By pulling the rope attached to the main body, you can release the gate. This allows you to operate at a distance from the main body while making it easier to work in rough sea conditions.
-
Feature 02
Working load limit of three tons for safe operation
Feature 02
Working load limit of three tons for safe operation
The design incorporates a central protrusion on the gate and a thicker hinge pin to withstand large loads.
-
Feature 03
Shock-absorbing structure
Feature 03
Shock-absorbing structure
The main body is equipped with an longer indent to absorb the impact on the body when the gate is forcefully released.
Drawing / Dimension / Request for quotation
To request a quotation, check the RFQ column for any product(s) you would like a quotation for.
The product(s) you select will be added to the quotation request list.
| RFQ | Drawing | No. | List Price | Size | d(mm) | d1(mm) | L(mm) | L1(mm) | B(mm) | B1(mm) | B2(mm) | B3(mm) | Unit Weight(kg) | Working load limit(t) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AK18174 | $1,394.50 | XL | 24 | 10 | 369 | 261 | 155 | 116 | 45 | 75 | 6.3 | 3.0 |
