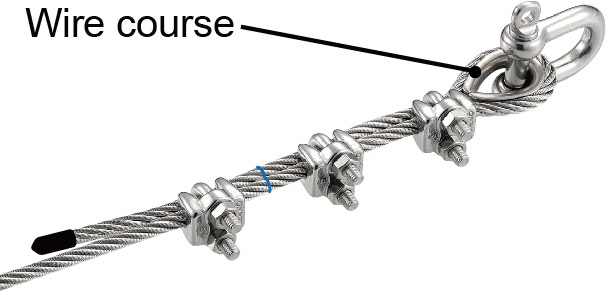

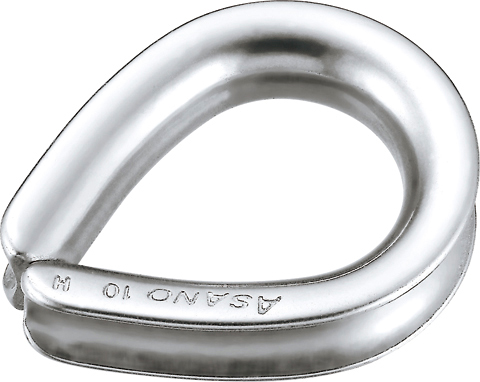

This is used when mounting the wire rope with a wire clip.
■Material: SCS14 (equivalent to SUS316)
Request Quotation for This Item
SHARE
Drawing / Dimension / Request for quotation
To request a quotation, check the RFQ column for any product(s) you would like a quotation for.
The product(s) you select will be added to the quotation request list.
| RFQ | Drawing | No. | List Price | Dia of wire rope(mm) | d(mm) | L(mm) | D(mm) | W(mm) | t(mm) | Unit Weight(g) |
|---|---|---|---|---|---|---|---|---|---|---|
|
AK3349 | $3.50 | 5 | 13 | 30 | 23 | 5.5 | 1 | 12 | |
|
|
AK3350 | $4.10 | 6 | 16 | 36 | 28 | 6.5 | 1 | 20 | |
|
|
AK3351 | $5.20 | 8 | 22 | 48 | 37 | 8.5 | 1 | 40 | |
|
|
AK3352 | $6.30 | 9 | 25 | 52 | 42 | 9.5 | 1 | 50 | |
|
|
AK3353 | $8.40 | 10 | 28 | 60 | 47 | 10.5 | 1.5 | 80 | |
|
|
AK3354 | $11.80 | 12 | 34 | 68 | 56 | 12.5 | 1.5 | 120 | |
|
|
AK3355 | $16.30 | 14 | 38 | 77.5 | 63 | 14.5 | 1.5 | 175 | |
|
|
AK3356 | $25.70 | 16 | 44 | 92 | 75 | 16.5 | 2 | 295 | |
|
|
AK3357 | $34.10 | 18 | 50 | 98 | 79 | 18.5 | 2 | 350 | |
|
|
AK3358 | $43.90 | 20 | 54 | 112 | 89 | 20.5 | 2 | 470 | |
|
|
AK3359 | $64.70 | 22 | 60 | 122 | 99 | 22.5 | 2.5 | 685 | |
|
|
AK3360 | $81.40 | 24 | 65 | 135 | 109 | 24.5 | 2.5 | 915 |
