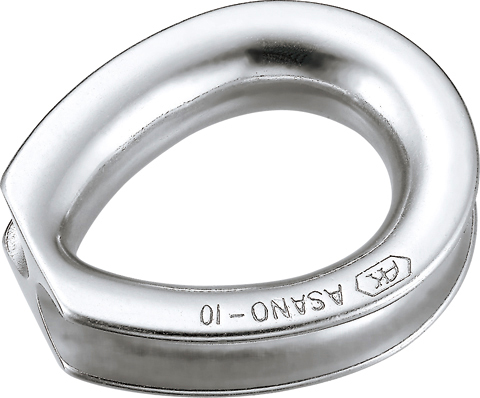

This is used when mounting the wire rope with a wire clip.
■Material: SCS13 (equivalent to SUS 304)
Request Quotation for This Item
SHARE
Drawing / Dimension / Request for quotation
To request a quotation, check the RFQ column for any product(s) you would like a quotation for.
The product(s) you select will be added to the quotation request list.
| RFQ | Drawing | No. | List Price | Dia of wire rope(mm) | d(mm) | L(mm) | D(mm) | W(mm) | t(mm) | Unit Weight(g) |
|---|---|---|---|---|---|---|---|---|---|---|
|
AK3383 | $7.30 | 6 | 16 | 37 | 30 | 7 | 2 | 25 | |
|
|
AK3384 | $8.70 | 8 | 22 | 50 | 41 | 9 | 2 | 53 | |
|
|
AK3385 | $10.40 | 9 | 25 | 53 | 45 | 10 | 2 | 63 | |
|
|
AK3386 | $11.60 | 10 | 28 | 60 | 50 | 11 | 2 | 86 | |
|
|
AK3387 | $14.80 | 12 | 34 | 71 | 60 | 13 | 2 | 140 | |
|
|
AK3388 | $20.70 | 14 | 38 | 81 | 69 | 15 | 2 | 210 | |
|
|
AK3389 | $28.60 | 16 | 44 | 95 | 80 | 18 | 2.5 | 345 | |
|
|
AK3390 | $35.20 | 18 | 48 | 104 | 86 | 20 | 2.5 | 410 | |
|
|
AK3391 | $48.90 | 20 | 54 | 117.5 | 97 | 22 | 2.5 | 560 |
