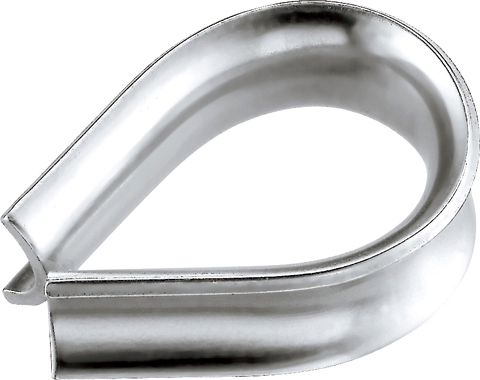

This rope course is for textile ropes only. Do not use this for wire ropes because the groove is shallow.
■Material: SUS304
Request Quotation for This Item
SHARE
Drawing / Dimension / Request for quotation
To request a quotation, check the RFQ column for any product(s) you would like a quotation for.
The product(s) you select will be added to the quotation request list.
| RFQ | Drawing | No. | List Price | Dia of rope(mm) | d(mm) | L(mm) | D(mm) | W(mm) | t(mm) | Unit Weight(g) |
|---|---|---|---|---|---|---|---|---|---|---|
|
AK3600 | $2.90 | 9 | 14 | 33 | 24 | 14 | 2.5 | 25 | |
|
|
AK3601 | $4.30 | 12 | 24 | 53 | 37 | 18 | 2.5 | 45 | |
|
|
AK3602 | $5.60 | 16 | 30 | 60 | 44 | 21 | 2.5 | 60 | |
|
|
AK3603 | $7.80 | 19 | 33 | 65 | 46 | 24 | 2.8 | 85 | |
|
|
AK3604 | $8.70 | 22 | 39 | 77 | 54 | 26 | 3 | 110 | |
|
|
AK3605 | $12.50 | 25 | 44 | 84 | 62 | 31 | 4 | 200 | |
|
|
AK17101 | $32.60 | 30 | 50 | 100 | 76 | 35 | 5 | 300 | |
|
|
AK17103 | $45.30 | 36 | 54 | 110 | 81 | 37 | 5 | 350 | |
|
|
AK17104 | $73.50 | 42 | 63 | 142 | 98 | 46 | 6 | 700 | |
|
|
AK17106 | $90.00 | 48 | 79 | 155 | 115 | 59 | 6 | 1000 | |
|
|
AK17105 | $133.10 | 45 | 64 | 154 | 112 | 58 | 6 | 1340 | |
| AK17107 | $170.90 | 50 | 80 | 175 | 135 | 65 | 6 | 1660 |
