■Material: SCS13 (equivalent to SUS304), Eye bolt: SUS304

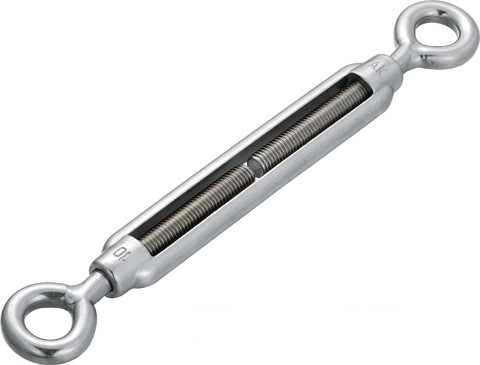

*The shape is different depending on the size as photo shows.
*L2 in the dimension table below indicates the dimension at the maximum extended length.
Request Quotation for This Item
SHARE
Drawing / Dimension / Request for quotation
To request a quotation, check the RFQ column for any product(s) you would like a quotation for.
The product(s) you select will be added to the quotation request list.
| RFQ | Drawing | No. | List Price | Size | L(mm) | L1(mm) | L2(mm) | L3(mm) | B(mm) | D1(mm) | Thread dia. | Unit Weight(g) | Work Load Limit(kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AK13311 | $8.30 | 5 | 69 | 112 | 162 | 120 | 14 | 8 | M5 | 45 | 80 | |
|
|
AK13312 | $11.20 | 6 | 89 | 131 | 207 | 141 | 19 | 10 | M6 | 83 | 125 | |
|
|
AK13313 | $17.00 | 8 | 120 | 178 | 268 | 192 | 22 | 14 | M8 | 175 | 285 | |
|
|
AK13314 | $27.50 | 10 | 151 | 217 | 338 | 235 | 24 | 16 | M10 | 295 | 410 | |
|
|
AK13315 | $46.20 | 12 | 201 | 284 | 439 | 304 | 32 | 18 | M12 | 570 | 550 |
