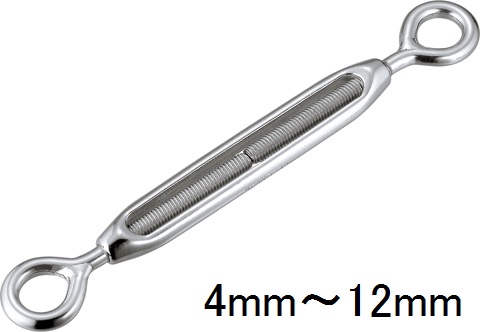

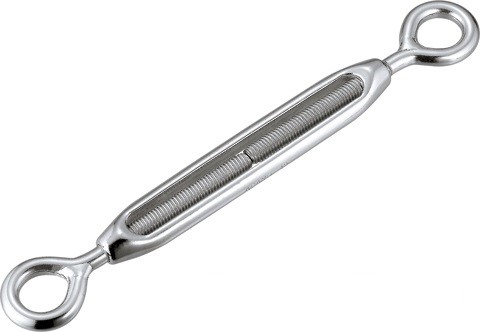

■Material: SCS14 (equivalent to SUS316), Eye bolt: SUS304

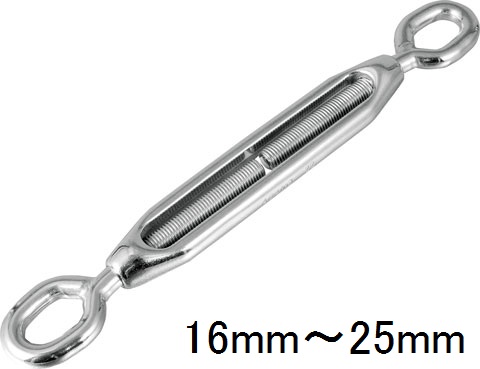

* The eye shape is different depending on the size.
*L2 in the dimension table below indicates the dimension at the maximum extended length.
Request Quotation for This Item
SHARE
Drawing / Dimension / Request for quotation
To request a quotation, check the RFQ column for any product(s) you would like a quotation for.
The product(s) you select will be added to the quotation request list.
| RFQ | Drawing | No. | List Price | Size | L(mm) | L1(mm) | L2(mm) | L3(mm) | B(mm) | D1(mm) | Thread dia. | Unit Weight(g) | Work Load Limit(kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AK2508 | $10.00 | 4 | 61 | 93 | 142 | 100 | 11 | 10 | M4 | 25 | 70 | |
|
|
AK2499 | $11.10 | 5 | 70 | 105 | 161 | 114 | 13 | 10 | W3/16 | 42 | 80 | |
|
|
AK2500 | $17.30 | 6 | 88 | 126 | 191 | 137 | 17 | 10 | W1/4 | 80 | 125 | |
|
|
AK2501 | $20.20 | 8 | 125 | 175 | 272 | 189 | 21 | 14 | W5/16 | 175 | 285 | |
|
|
AK2502 | $30.00 | 9 | 155 | 217 | 340 | 233 | 25 | 19 | W3/8 | 300 | 410 | |
|
|
AK2503 | $57.50 | 12 | 212 | 318 | 490 | 340 | 34 | 26 | W1/2 | 730 | 600 | |
|
|
AK2504 | $106.20 | 16 | 250 | 375 | 577 | 403 | 42 | 25*40 | W5/8 | 1210 | 900 | |
|
|
AK2505 | $182.50 | 19 | 300 | 435 | 677 | 469 | 50 | 25*40 | W3/4 | 2300 | 1070 | |
|
|
AK2506 | $379.90 | 22 | 325 | 487 | 737 | 527 | 60 | 30*48 | W7/8 | 3,590 | 2100 | |
|
|
AK2507 | $592.80 | 25 | 350 | 532 | 788 | 578 | 70 | 34*54 | W1 | 5,520 | 2700 |
